AGO Air Display: Core Functions Guide

• 🔓 Touchless Unlock
• 🧭 Navigation Casting
• 📏 Estimated Range
• 💡 Headlight Control
• 🔌 USB Charging Port
• 🚶‍♂️ Push Assist Mode
• ⚙️ User Menu
  • Clear Trip
  • ⏲️ Auto Power-Off
  • 🌙 Backlight Adjustment
  • 🌍 Change Language
  • 🔋 Battery Info
  • Display System Info
• 🛠️ OTA Firmware Update

---

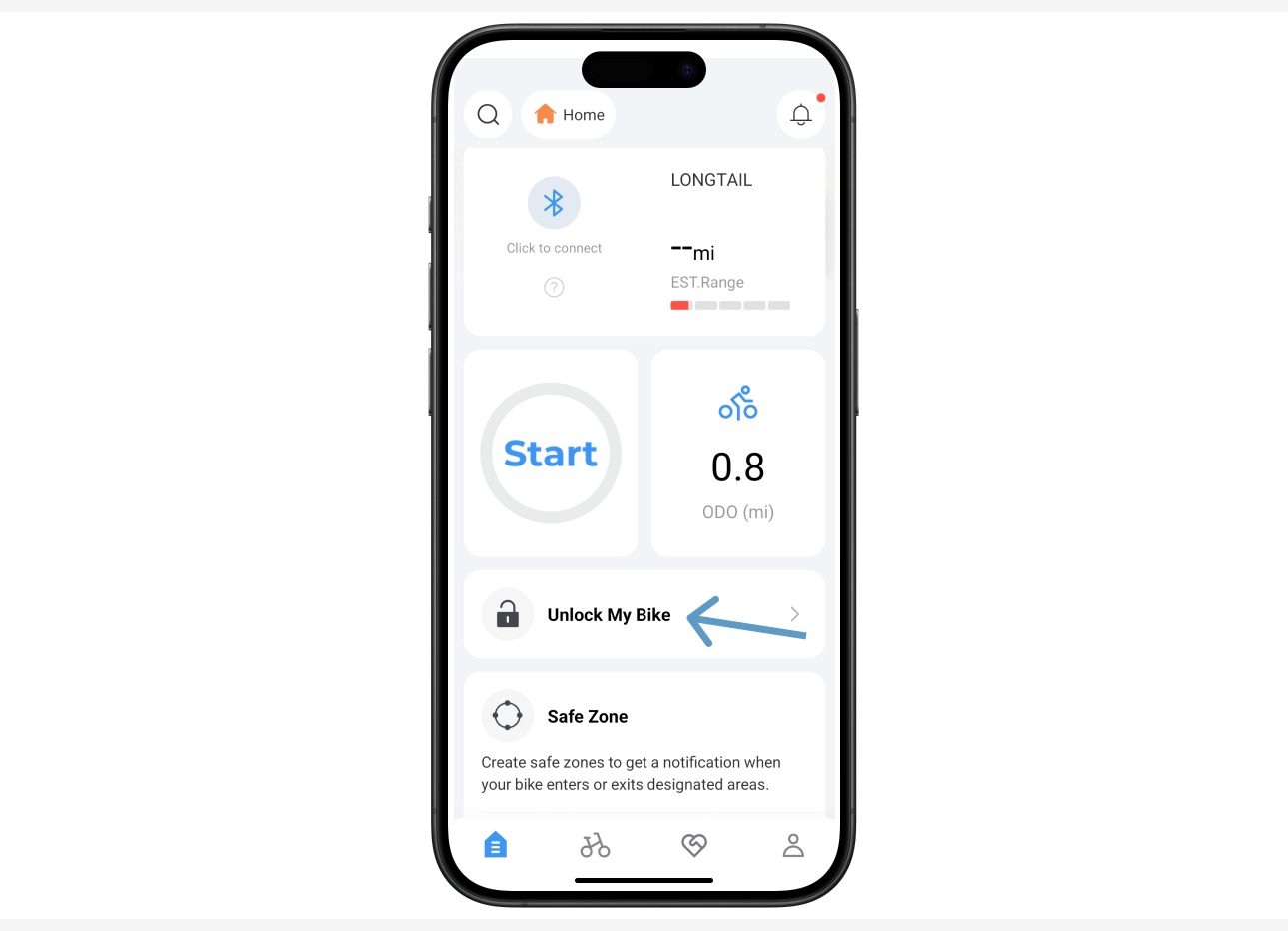

🔓 Touchless Unlock

Enjoy a PIN-free unlocking experience:

1. Bind your bike display to the Tenways App.
2. From then on, the bike will automatically unlock when your phone is nearby and the bike is turned on.

No need to manually enter the PIN on the display.

---

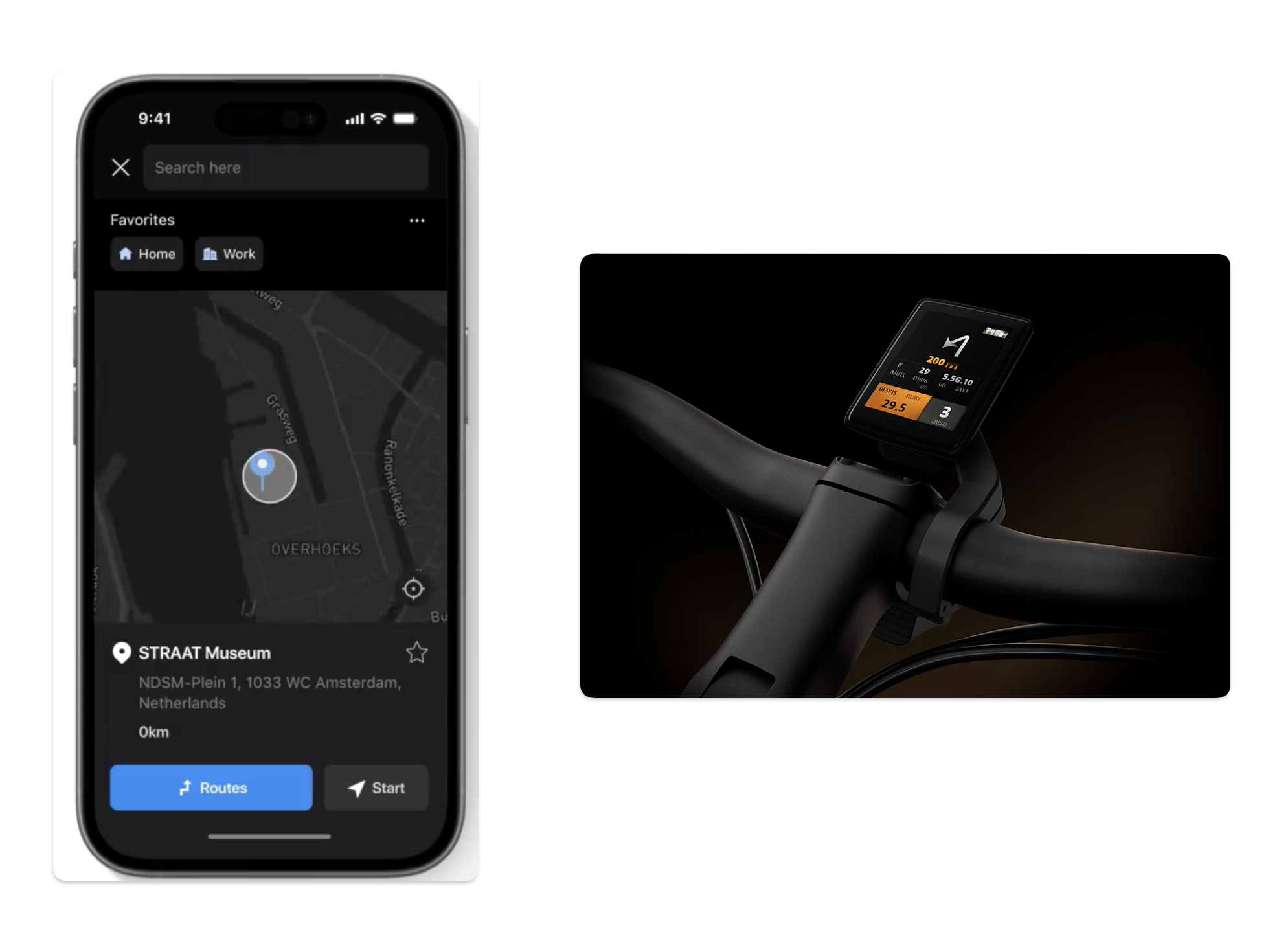

🧭 Navigation Casting

Use the Tenways App for turn-by-turn navigation on the display:

1. Open the Tenways App.
2. Select your route and start navigation.
3. Directions will appear directly on your bike display.

Navigation casting provides safe and simple route guidance.

---

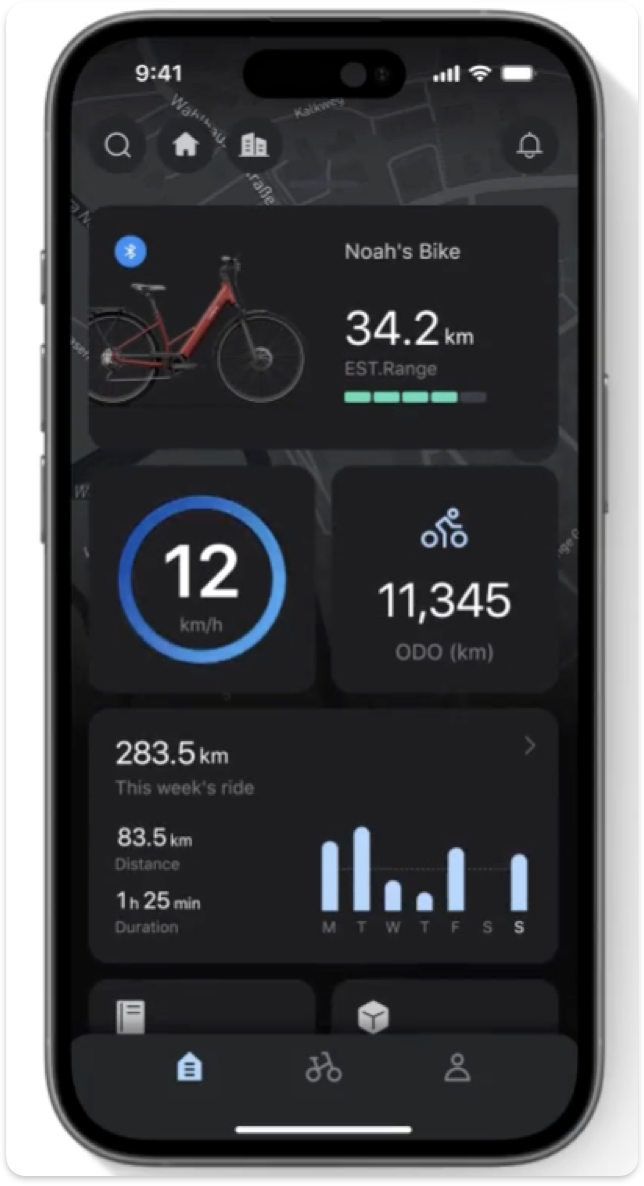

📏 Estimated Range

Check your battery’s estimated remaining range:

1. Connect your bike to the Tenways App via Bluetooth.
2. Use the display button to switch between PAS (Pedal Assist System) levels.

• The range updates based on the selected PAS level.
• Note: PAS 0 will not show any range estimation.

Display showing estimated range under PAS 3

---

💡 Headlight Control

To turn the front light on or off:

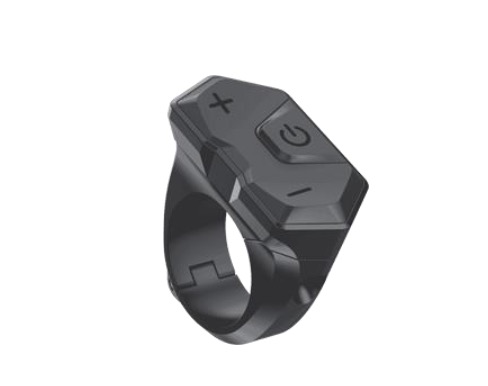

• Hold the [+] button on the display until the light toggles.

---

🔌 USB Charging Port

The display includes a Type-C USB port (5V/1000mA) for emergency charging.

Use the port to charge small devices like your cellphone when needed.

---

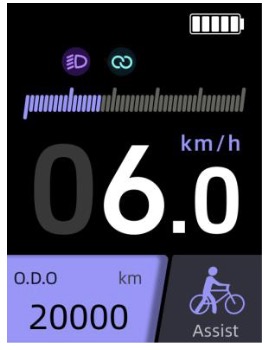

🚶‍♂️ Push Assist Mode (6 km/h)

Activate Walk Assist to push the bike easily:

• Ensure the PAS level is set to 0.
• Press and hold the [-] button for 1 second.
• The bike will move forward at a speed of up to 6 km/h until you release the button.

Use Walk Assist when pushing uphill, etc.

---

⚙️ User Menu

To access the user menu:

• When the bike is stationary and no error is active, press and hold both [+] and [-] buttons for 2 seconds.

---

 Clear Trip

• Go to Clear Trip in the menu and press the Power button.
• Use [+] or [-] to select “Yes” or “No”, then confirm with the Power button.

⏲️ Auto Power-Off

🌙 Backlight Adjustment

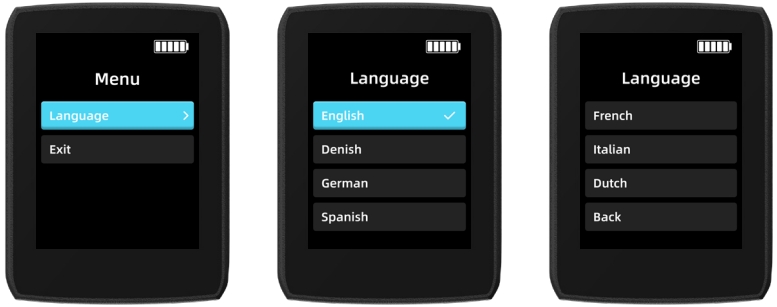

🌍 Change Language

🔋 Battery Info

View battery-related details:

• Voltage
• Current
• Battery Cycles (100% discharge per cycle)
• Serial Number
• SW Ver (Software Version)
• HW Ver (Hardware Version)

Display System Info

---

🛠️ OTA Firmware Update

Before you start:

Ensure your bike's and phone's battery is above 20%.

Important: Please wait for the update to finish completely. Do not turn off the display or close the app until the update is completed.

Step 1: Open the app and turn on your bike display. Ensure your bike is connected to the app via Bluetooth. On the app home screen, tap your bike icon.

Step 2: Tap Bike Detail.

Step 3: Update Firmware If a new version is available, you will see an update notification. Tap the version number to begin the firmware update.
