Brake Pads Maintenance and Replacement Guide

Your bike’s brake pads are critical in ensuring your safety by providing reliable stopping power. Regular checks and timely replacements are essential. This guide explains what brake pads to buy, when to check and replace them, and how to replace them.

1. What Brake Pads Should You Buy?

When purchasing brake pads, ensure compatibility with your bike model. Refer to the table below for compatible brake pads for each TENWAYS e-bike model:

Bike Model	Compatible Brake Pads	Where to Get Them
CGO600, CGO800S, CGO600 Pro, CGO009, CGO600 Plus, CGO800 Plus	Shimano B01s or Tektro E10.11	Online or local retailers, or via TENWAYS (email support to order)
AGO X, AGO T
CARGO ONE/Longtail Duo	Tektro Q13RS	Online or local retailers

---

2. When to Check and Replace Brake Pads

Please regularly inspect the wear of your brake pads:

• Check the brake pads after riding 1,000 km on normal roads or 600 km on complex road conditions.
• Replace the brake pads promptly if they are worn down by two-thirds or more.

---

3. How to Replace Brake Pads

Tools Needed:

• New brake pads
• Allen wrench
• Needle-nose pliers (optional)

Step-by-Step Instructions:

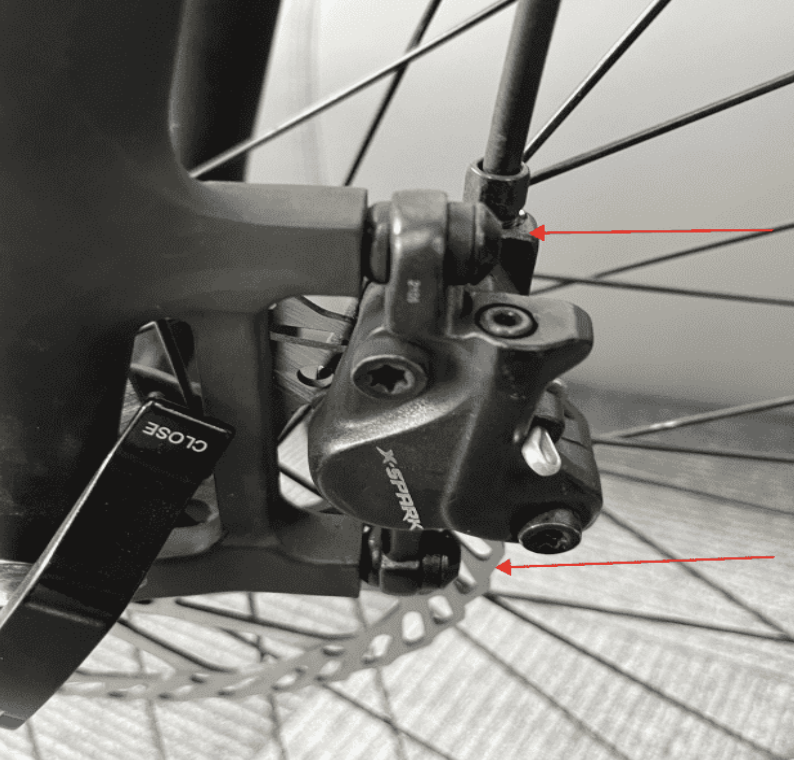

1. Remove the Caliper:
   • Ensure your bike is stable. Use an Allen wrench to remove the bolts securing the caliper to the frame. Carefully detach the caliper.
2. Remove the Old Pads:
   • Locate the retaining pin and use pliers to straighten it. Remove the pin to release the pads. Slide out the old brake pads carefully.
3. Install the New Pads:
   • Press the pistons back into place to create enough space for the new pads. Align the new brake pads in the caliper slot, ensuring they face the correct direction. Secure the pads with the retaining pin, bending it to lock it in place.
4. Reassemble and Test:
   • Reattach the caliper to the frame using the bolts. Ensure the wheel spins freely.
   • Test the brakes by squeezing the brake lever to confirm proper alignment and functionality.

---

Additional Tips

New brake pads require a brief break-in period. Ride at a moderate speed and apply the brakes gently several times to ensure optimal performance.

For any questions or further help, feel free to contact our support team at [e-mail].
